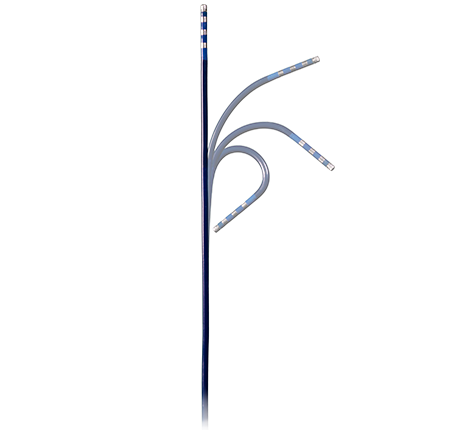

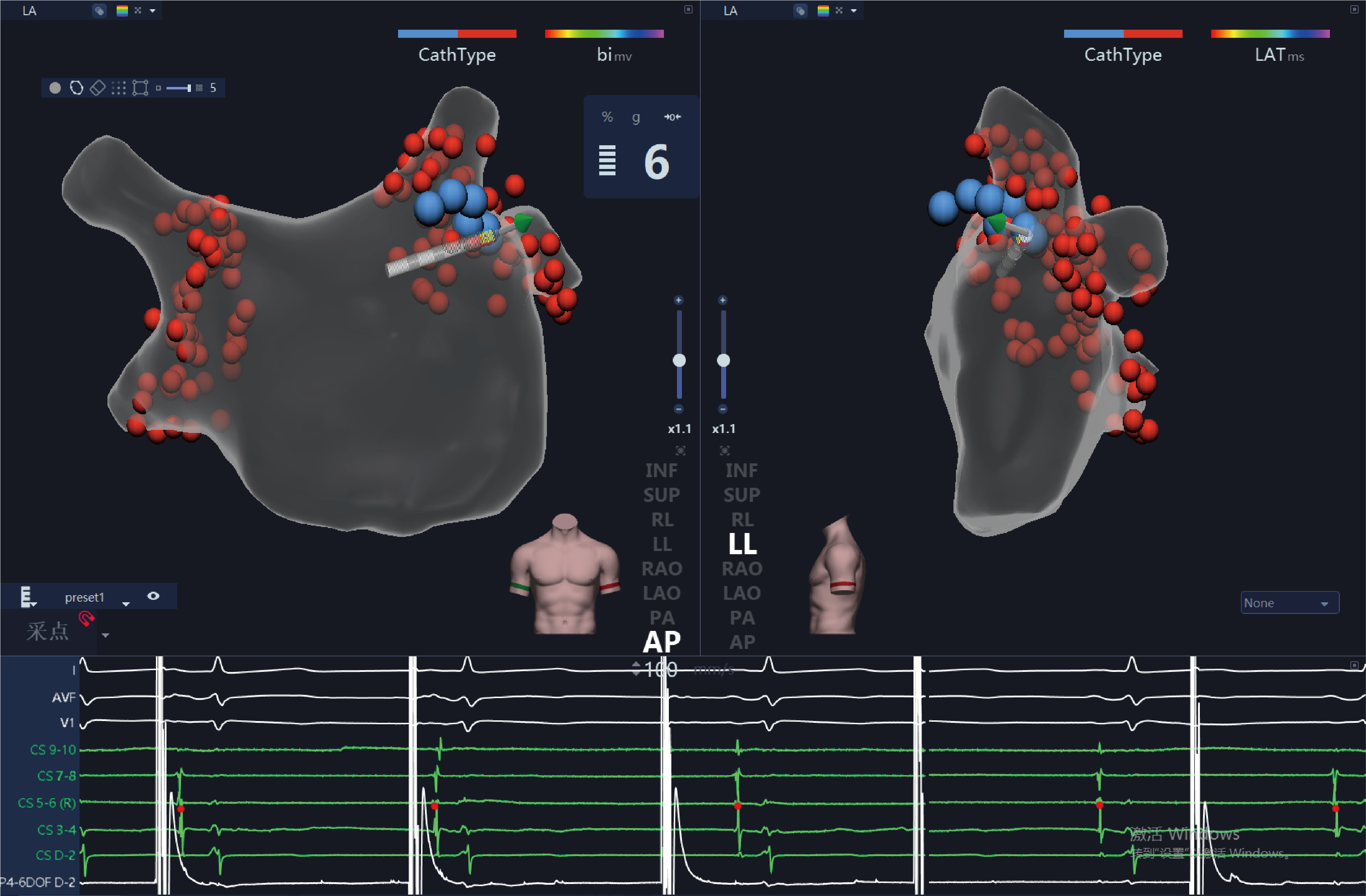

Featuring 1-2 electrode discharge at the tip, it minimizes pain and muscle fasciculation, eliminating the need for general anesthesia. Equipped with a built-in magnetic sensor compatible with the HT Viewer® 3D Mapping System and contact force sensing technology, it ensures both safety and efficacy in procedures.
- Real-time display of contact force (grams) and vector
- Reduced ineffective energy discharges
- Safe and effective treatment, cover more EP procedures
- Fiber-optic technology with 4-color indication on the tip
- Remain the same anesthetic protocol as you would using RF technology.
- Catheters diameter in small size
| REF | Electrode Number | Pipe diameter (mm) | Length (mm) | Width of electrodes (mm) | Length of electrodes (mm) | Electrode spacing (mm) |
|---|---|---|---|---|---|---|
| 1552003SB07 | 4 | 2.5 (7.5F) | 1150 | 2/2/2 | 2 | 3-3-3 |
| 1552003SD08 | 4 | 2.5 (7.5F) | 1150 | 2/2/2 | 2 | 3-3-3 |
| 1552003SF09 | 4 | 2.5 (7.5F) | 1150 | 2/2/2 | 2 | 3-3-3 |
| 1552003BB10 | 4 | 2.5 (7.5F) | 1150 | 2/2/2 | 2 | 3-3-3 |
| 1552003DD11 | 4 | 2.5 (7.5F) | 1150 | 2/2/2 | 2 | 3-3-3 |
| 1552003FF12 | 4 | 2.5 (7.5F) | 1150 | 2/2/2 | 2 | 3-3-3 |
