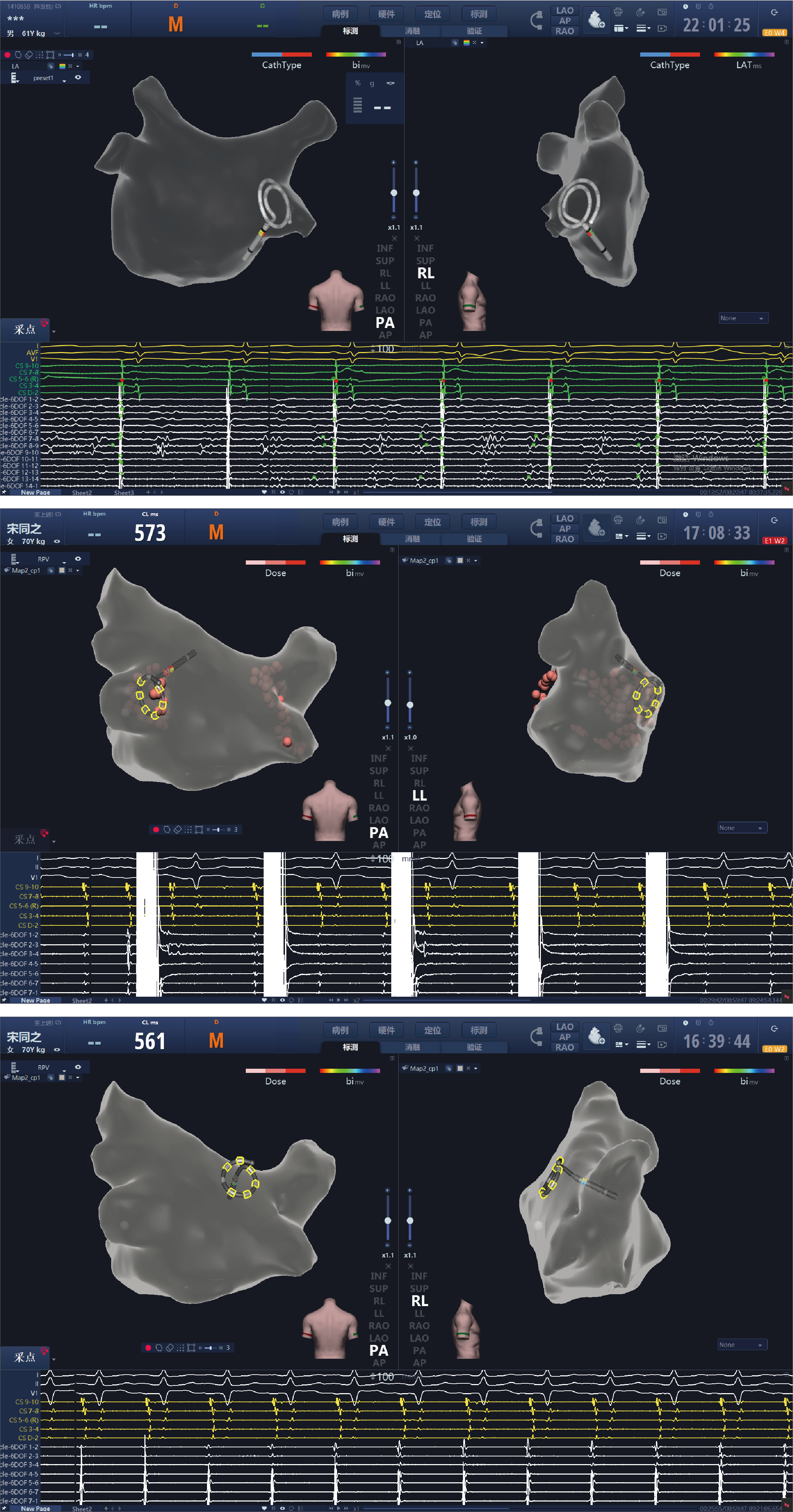

It is available for FAM (Fast Anatomical Mapping), multi-electrode mapping, and ablation, combined with the HT Viewer® 3D mapping system and PFA generator.
- High-efficient PVI tool with multi-electrode discharge to achieve contiguous transmural lesion.
- Three ablation modes are available for contact status: all, contact only and manual.
- Patented tissue contact indication to guide ablation and create durable lesions.
- Reduced ineffective discharges in the blood pool for safety.

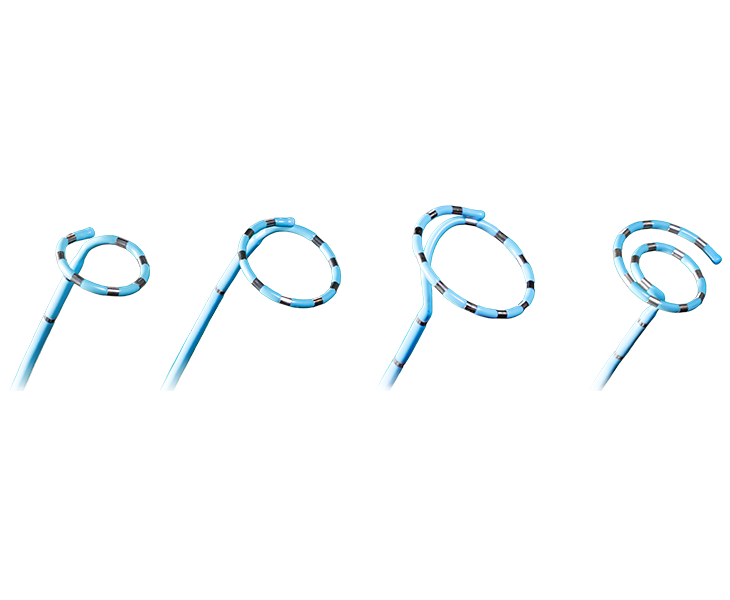

- One certificate for two shapes, single/double fixed-loop PFA ablation catheters with contact indication.
- Available in multiple sizes and specifications for a range of anatomies.
| REF | Electrode Number | Pipe diameter (mm) | Length (mm) | Width of electrodes (mm) | Outer diameter (mm) | Loop electrode spacing (mm) | Loop diameter (mm) |
|---|---|---|---|---|---|---|---|
| 501105 | 7 | 2.33 (7F) | 1200 | 2 | 1.67 (5F) | 4 | 15 |
| 501107 | 8 | 2.33 (7F) | 1200 | 2 | 1.67 (5F) | 4 | 15 |
| 501109 | 9 | 2.33 (7F) | 1200 | 2 | 1.67 (5F) | 4 | 20 |
| 501112 | 10 | 2.33 (7F) | 1200 | 2 | 1.67 (5F) | 4 | 20 |
| 501116 | 12 | 2.33 (7F) | 1200 | 2 | 1.67 (5F) | 4 | 25 |
| 501201 | 14 | 2.33 (7F) | 1200 | 2 | 1.67 (5F) | 4 | 10-20 |
| 501204 | 18 | 2.33 (7F) | 1200 | 2 | 1.67 (5F) | 4 | 15-25 |
| 501206 | 22 | 2.33 (7F) | 1200 | 2 | 1.67 (5F) | 4 | 20-30 |
