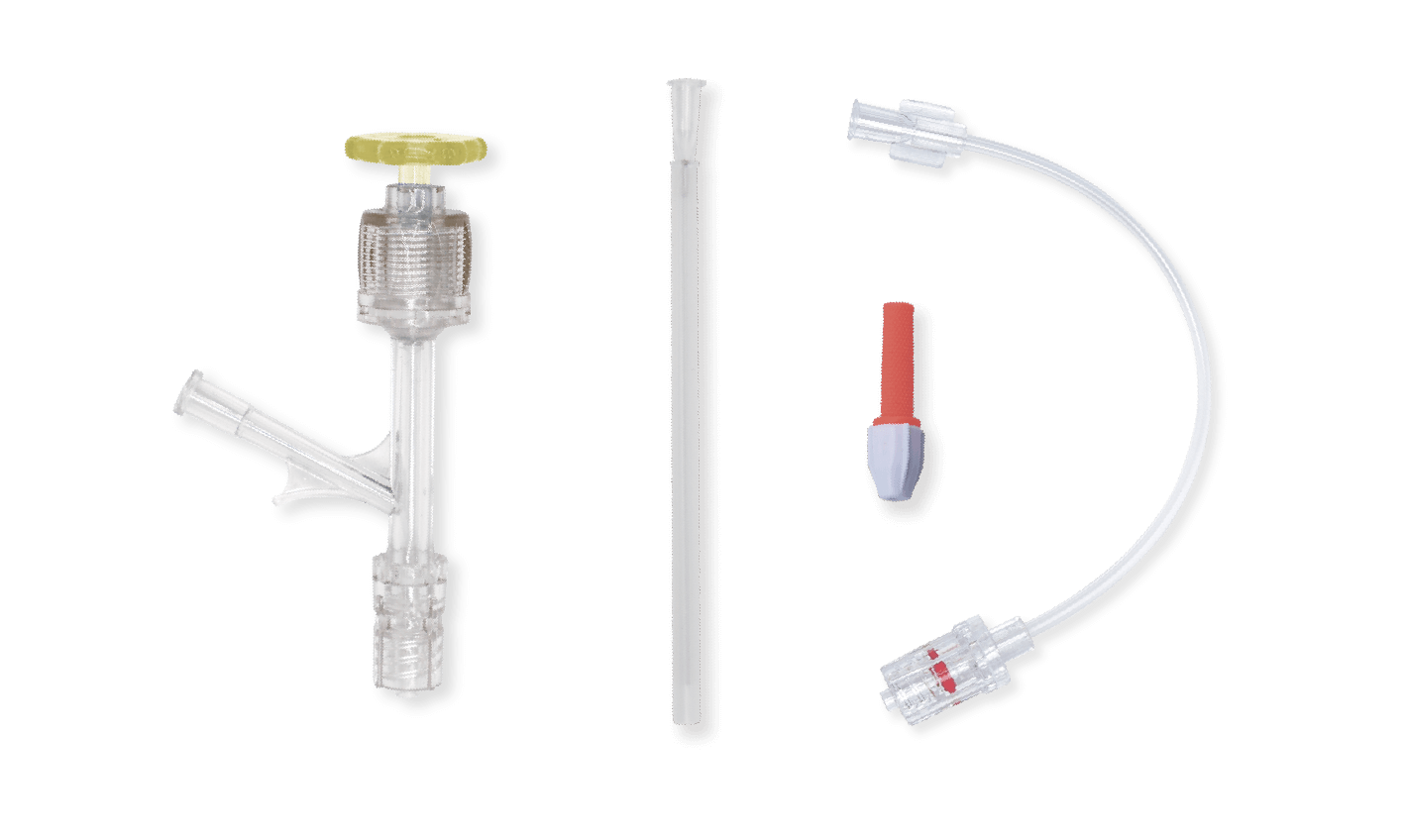

SealingPro™ Y Connector is designed for effortless operation and delivers superior hemostasis. It's your reliable choice for seamless device connections during interventional procedures.
- Easy to operate and good hemostasis with safe valve to lock/open
- Big lumen for device delivery
- Ensure the insufficient extension length of the devices in the vessel
- Maximum 800psi by safe valve
| REF | Length (mm) | I.D. (mm) | Quantity | Introducer | Torque device | Extension tube | Type |
|---|---|---|---|---|---|---|---|
| 18821100 | 82 | 3.4F (10F) | 1 | Y | Y | N | Single Valve-Type I |
| 18821200 | 82 | 3.4F (10F) | 1 | Y | Y | Y | Single Valve-Type I |
| 18891100 | 89 | 3.4F (10F) | 1 | Y | Y | N | Double Valve-Type II |
| 18891200 | 89 | 3.4F (10F) | 1 | Y | Y | Y | Double Valve-Type II |
| 18992100 | 99 | 3.4F (10F) | 1 | Y | Y | N | Double Valve-Type IV (2 Way) |
| 18992200 | 99 | 3.4F (10F) | 1 | Y | Y | Y | Double Valve-Type IV (2 Way) |
* The 60mm specification is only in the NMPA certificate.
