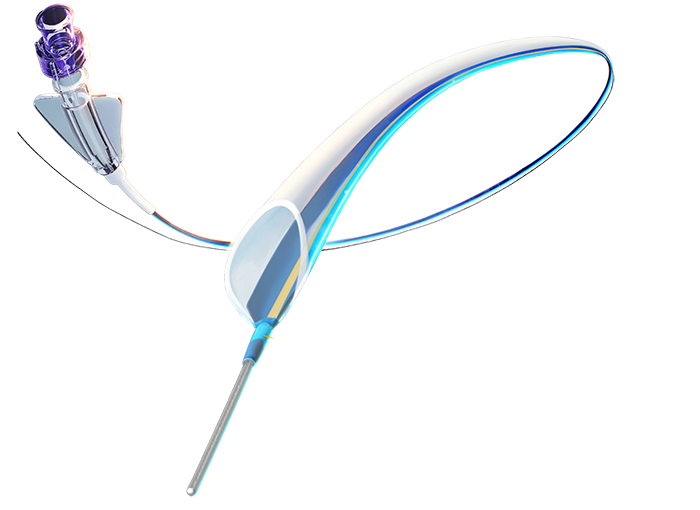

Sniffer™ Aspiration Catheter is a rapid exchange type catheter that features a big lumen and superior pushability and trackability designed for removing thrombus effectively and rapidly in the coronary.
- Improved thrombus removal capability ensures fast and stable suction
- Excellent thrombus-aspiration capability
- Enhanced stiffness of the shaft provides excellent kink resistance, trackability and pushability
- Atraumatic round tip design to minimize possible damage on vessels
- 4mm short tip to increase catheter crossability over tortuous anatomy
- Platinum marker provides reliable fluoroscopic visibility
- 50/100/200mm guidewire lumen length to meet di erent clinical needs
| REF | Effective length(cm) | Distal I.D. (mm) | Proximal I.D. (mm) | Maximum O.D. (mm) | Guidewire lumen I.D. | Guidewire lumen length | Guiding catheter compatibility | Side hole | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 65765501 | 135 | 1.27 | 1.39 | 1.93 | 0.017" | 200 | 7F | 0 | ||||
| 65654402 | 135 | 0.99 | 1.11 | 1.65 | 0.017" | 200 | 6F | 0 | ||||
| 65765504 | 135 | 1.27 | 1.39 | 1.93 | 0.017" | 50 | 7F | 0 | ||||
| 65654405 | 135 | 0.99 | 1.11 | 1.65 | 0.017" | 50 | 6F | 0 | ||||
| 65765529 | 140 | 1.35 | 1.35 | 1.93 | 0.017" | 100 | 7F | 0 | ||||
| 65654430 | 140 | 1.1 | 1.1 | 1.75 | 0.017" | 100 | 6F | 0 | ||||
| 65765507 | 135 | 1.27 | 1.39 | 1.93 | 0.017" | 200 | 7F | 2 | ||||
| 65654408 | 135 | 0.99 | 1.11 | 1.65 | 0.017" | 200 | 6F | 2 | ||||
| 65765510 | 135 | 1.27 | 1.39 | 1.93 | 0.017" | 50 | 7F | 2 | ||||
| 65654411 | 135 | 0.99 | 1.11 | 1.65 | 0.017" | 50 | 6F | 2 | ||||
| 65765531 | 140 | 1.35 | 1.35 | 1.93 | 0.017" | 100 | 7F | 2 | ||||
| 65654432 | 140 | 1.1 | 1.1 | 1.75 | 0.017" | 100 | 6F | 2 | ||||
