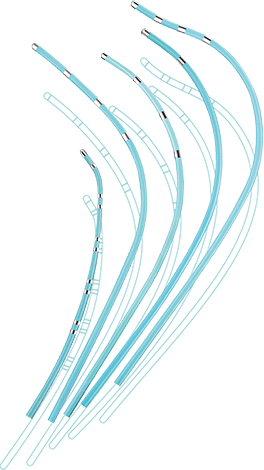

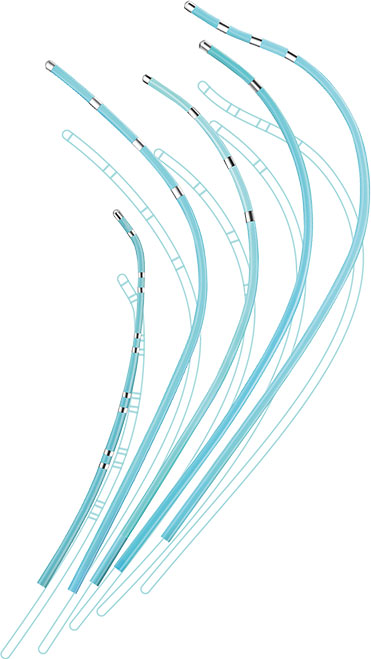

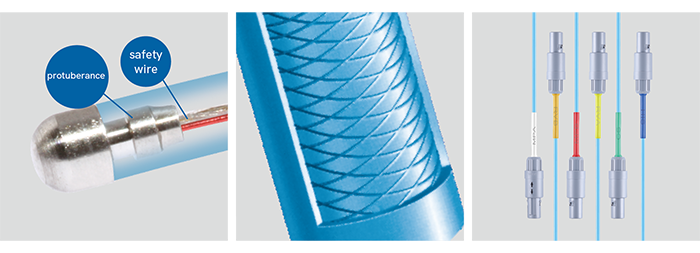

APT Medical fixed curve diagnostic catheters with braided shaft ensure pushability and torqueability, and with platinum-iridium electrodes to offer stable and high-quality signal during mapping.
| Product | REF. | French size | Spacing (mm) | Length (cm) | Curve |
|---|---|---|---|---|---|
| Bipolar | 901303 | 4F | 10 | 1200 | MPA |
| 901302 | 6F | 10 | 1200 | MPA | |
| Quadripolar | 901441 | 5F | 2-5-2 | 1200 | MPA |
| 901437 | 5F | 5 | 1200 | RVA | |
| 901430 | 5F | 10 | 1200 | MPB | |
| 901444 | 5F | 2-5-2 | 1200 | HIS | |
| 901446 | 6F | 10 | 1200 | MPA | |
| 901456 | 6F | 2-5-2 | 1200 | MPA | |
| 901445 | 6F | 10 | 1200 | MPB | |
| 901450 | 6F | 5 | 1200 | MPB | |
| 901452 | 6F | 5 | 1200 | RVA | |
| 901457 | 6F | 2-5-2 | 1200 | RVA | |
| 901328 | 6F | 2-8-2 | 1200 | HIS | |
| Decapolar | 901531 | 5F | 2-8-2 | 1200 | CS |
| 901530 | 5F | 2-8-2 | 1200 | CS | |
| 901542 | 6F | 2-5-2 | 1200 | CS | |
| 901543 | 6F | 2-5-2 | 1200 | CS |
