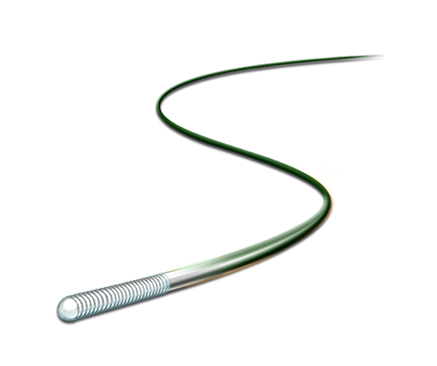

Crafted from a single-piece formed core stainless steel wire, Susrail™ Guidewire offers exceptional torque control and tactile feedback. 0.035" mainly used for the treatment of thoracoabdominal aortic aneurysms, dissection and other lesions.
- Stainless steel core provides excellent support and torqueability for device delivery in interventional procedures, including endovascular aortic repair
- Shapeable tip with good maneuverability
- Atraumatic tip with superior tactile feedback
- Platinum tungsten radiopaque allows clear visibility
- Distal hydrophilic coating and proximal PTFE coating for crossing lesions smoothly
- Different low-friction distal coating and coil design provide with various choices of support and stiffness.
* The product is not available in all countries, please contact us for more details.
| REF | Diameter | Length (cm) | Type of Coil | Curve | Radiopaque Coil | |||
|---|---|---|---|---|---|---|---|---|
| 42135261 | 0.035’’ | 260 | Half Coil | Straight | Yes | |||
| 42135301 | 0.035’’ | 300 | Half Coil | Straight | Yes | |||
| 42535261 | 0.035’’ | 260 | Half Coil | 7.5mm J | Yes | |||
| 42635261 | 0.035’’ | 260 | Half Coil | Double Curve | Yes | |||
| 169135261P | 0.035’’ | 260 | Half Coil | Straight | Yes | |||
| 169135301P | 0.035’’ | 300 | Half Coil | Straight | Yes | |||
| 169535261P | 0.035’’ | 260 | Half Coil | 7.5mm J | Yes | |||
| 169535301P | 0.035’’ | 300 | Half Coil | 7.5mm J | Yes | |||
| 169635261P | 0.035’’ | 260 | Half Coil | Double Curve | Yes | |||
| 169635301P | 0.035’’ | 300 | Half Coil | Double Curve | Yes | |||
| 169835261P | 0.035’’ | 260 | Half Coil | C Curve | Yes | |||
| 169835301P | 0.035’’ | 300 | Half Coil | C Curve | Yes | |||
| 169935261P | 0.035’’ | 260 | Half Coil | D Curve | Yes | |||
| 169935301P | 0.035’’ | 300 | Half Coil | D Curve | Yes | |||
| 169035261P | 0.035’’ | 260 | Half Coil | E Curve | Yes | |||
| 169035301P | 0.035’’ | 300 | Half Coil | E Curve | Yes | |||
| 169G35261P | 0.035’’ | 260 | Half Coil | G Curve | Yes | |||
| 169G35301P | 0.035’’ | 300 | Half Coil | G Curve | Yes | |||
| REF | Diameter | Length (cm) | Type of Coil | Curve | Radiopaque Coil | |||
|---|---|---|---|---|---|---|---|---|
| 42135152 | 0.035’’ | 150 | Full Coil | Straight | No | |||
| 42135262 | 0.035’’ | 260 | Full Coil | Straight | No | |||
| 42435152 | 0.035’’ | 150 | Full Coil | 3mm J | No | |||
| 42435182 | 0.035’’ | 180 | Full Coil | 3mm J | No | |||
| 42435262 | 0.035’’ | 260 | Full Coil | 3mm J | No | |||
| 169135152P | 0.035’’ | 150 | Full Coil | Straight | No | |||
| 169135182P | 0.035’’ | 180 | Full Coil | Straight | No | |||
| 169135262P | 0.035’’ | 260 | Full Coil | Straight | No | |||
| 169435152P | 0.035’’ | 150 | Full Coil | 3mm J | No | |||
| 169435182P | 0.035’’ | 180 | Full Coil | 3mm J | No | |||
| 169435262P | 0.035’’ | 260 | Full Coil | 3mm J | No | |||
| 169135263P | 0.035’’ | 260 | Full Coil | Straight | Yes | |||
| 169135303P | 0.035’’ | 300 | Full Coil | Straight | Yes | |||
| 169635263P | 0.035’’ | 260 | Full Coil | Double Curve | Yes | |||
| 169635303P | 0.035’’ | 300 | Full Coil | Double Curve | Yes | |||
| 169835263P | 0.035’’ | 260 | Full Coil | C Curve | Yes | |||
| 169835303P | 0.035’’ | 300 | Full Coil | C Curve | Yes | |||
| 169935263P | 0.035’’ | 260 | Full Coil | D Curve | Yes | |||
| 169935303P | 0.035’’ | 300 | Full Coil | D Curve | Yes | |||
| 169035263P | 0.035’’ | 260 | Full Coil | E Curve | Yes | |||
| 169035303P | 0.035’’ | 300 | Full Coil | E Curve | Yes | |||
| 169G35263P | 0.035’’ | 260 | Full Coil | G Curve | Yes | |||
| 169G35303P | 0.035’’ | 300 | Full Coil | G Curve | Yes | |||
