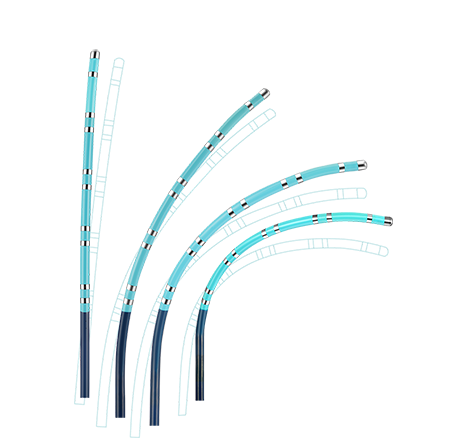

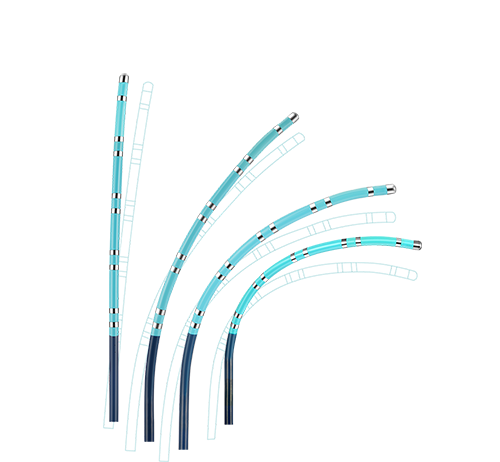

Triguy Steerable Mapping Catheter

Product Codes

REF	Electrode Number	Catheter Diameter (mm)	Length (mm)	Spacing (mm)	Curve Shape
901601	4	5F	1100	5	MPD-D
901602	4	5F	1100	2-5-2	MPD-B
901603	4	5F	1100	2-5-2	MPD-D
900198	4	5F	1100	2-5-2	MPD-SL
900212	4	5F	1100	5-5-5	MPD-CS-L
900217	4	5F	1100	2-5-2	MPD-CS-M
900218	4	5F	1100	2-5-2	MPD-CS-L
901604	4	5F	1100	5	MPD-S
900197	4	5F	1100	2-5-2	MPD-S
901614	4	6F	1100	5	MPD-S
901713	4	6F	1100	5	MPD-SL
901610	4	6F	1100	5	MPD-B
901611	4	6F	1100	5	MPD-D
901612	4	6F	1100	2-5-2	MPD-B
901613	4	6F	1100	2-5-2	MPD-D
900220	4	6F	1100	2-5-2	MPD-SL
900221	4	6F	1100	2-8-2	MPD-B
900230	4	6F	1100	2-2-2	MPD-CS-M
900231	4	6F	1100	2-2-2	MPD-CS-L
900239	4	6F	1100	2-5-2	MPD-CS-M
900240	4	6F	1100	2-5-2	MPD-CS-L
900761	6	6F	1100	2-5-2	MPD-S
900801	8	6F	1100	2-8-2	MPD-S
900280	10	5F	1100	2-5-2-5-2-5-2-5-2	MPD-CS-M
900281	10	5F	1100	2-5-2-5-2-5-2-5-2	MPD-CS-L
901661	10	6F	1100	2-5-2-5-2-5-2-5-2	MPD-D
901663	10	6F	1100	5	MPD-G
901664	10	6F	1100	2-5-2-5-2-5-2-5-2	MPD-G
901665	10	6F	1100	2	MPD-G
901741	10	6F	1100	2-5-2-5-2-5-2-5-2	MPD-CS-S
901742	10	6F	1100	2-5-2-5-2-5-2-5-2	MPD-CS-M
901743	10	6F	1100	2-5-2-5-2-5-2-5-2	MPD-CS-L
901746	10	6F	1100	2-8-2-8-2-8-2-8-2	MPD-CS-L
602601	11	6F	1100	2-5-2-5-2-5-2-5-2-175	MPD-S
602602	11	6F	1100	2-8-2-8-2-8-2-8-2-175	MPD-S
602603	11	6F	1100	2-5-2-5-2-5-2-5-2-175	MPD-CS
602604	11	6F	1100	2-8-2-8-2-8-2-8-2-175	MPD-CS
602606	21	6F	1100	2-8-2-8-2-8-2-8-2-8-2-8-2-8-2-8-2-8-2-175	MPD-H
602707	21	7F	1100	2-8-2-8-2-8-2-8-2-8-2-8-2-8-2-8-2-8-2-175	MPD-H
