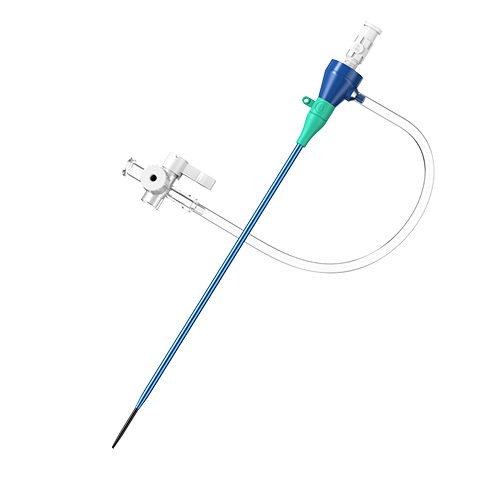

APT Medical Braidin™ hemostasis introducer with braided stainless steel structure is designed to provide a thin wall and large lumen, while maintaining excellent kink resistance, to empower you to win the first step in transradial procedures.

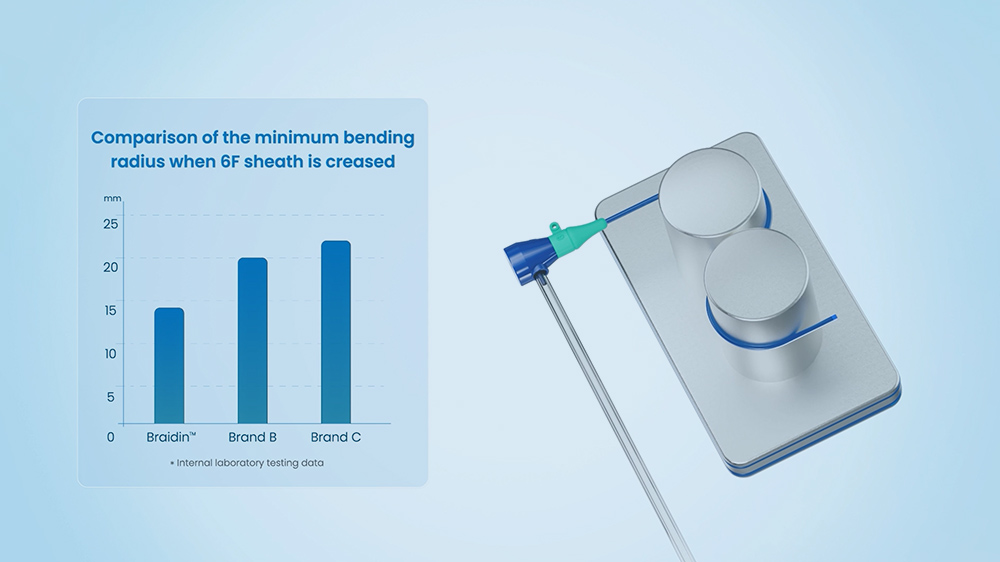

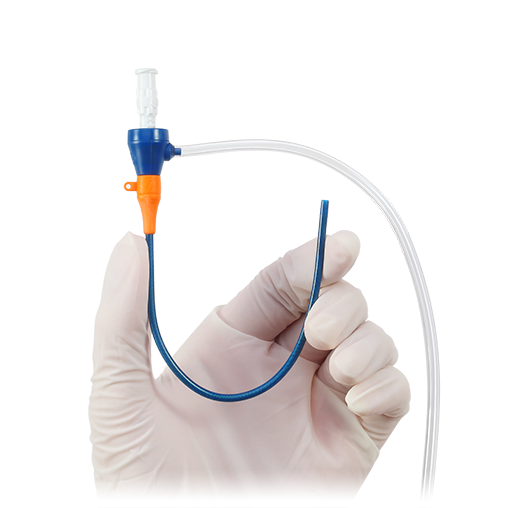

- Braided shaft to provide excellent kink resistance and very small outer diameter

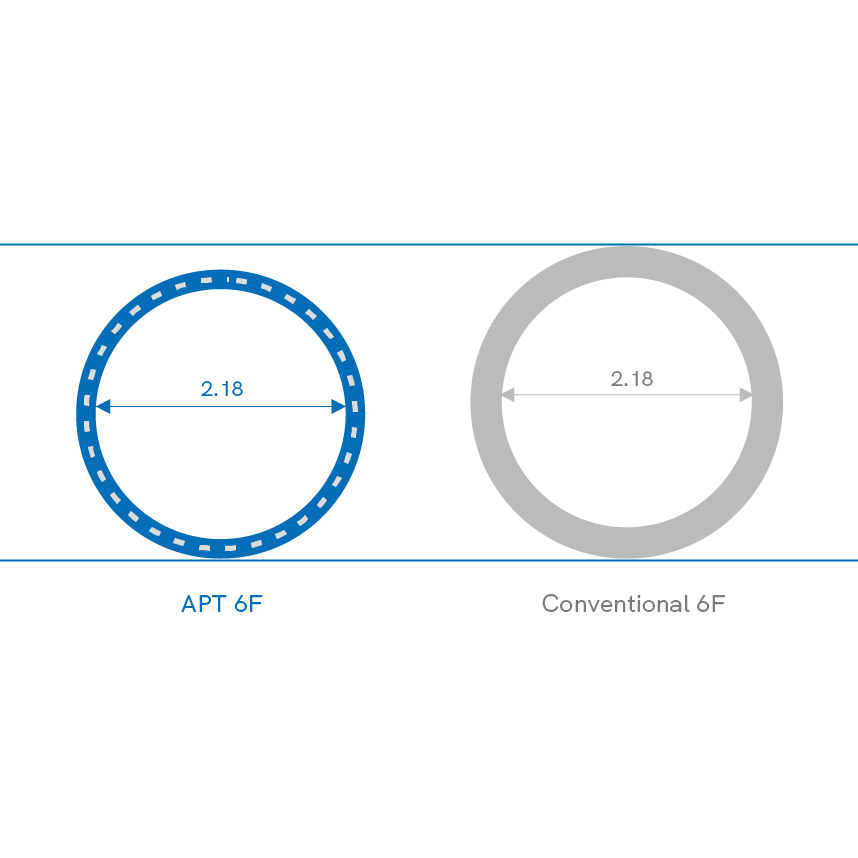

- The thin wall design reduces the outer diameter of the sheath and minimizes patients' discomfort and pain
- Facilitates hemostasis and allows for free movement of hand
- Significantly reduced complication rates compared to Transfemoral approach
- Smooth tapered transition reduces puncture resistance and the incidence of complications
- Distal hydrophilic coating to enhance the smoothness
- Over 88 sizes from 4F-24; Sheath length variable from 7cm to 25cm

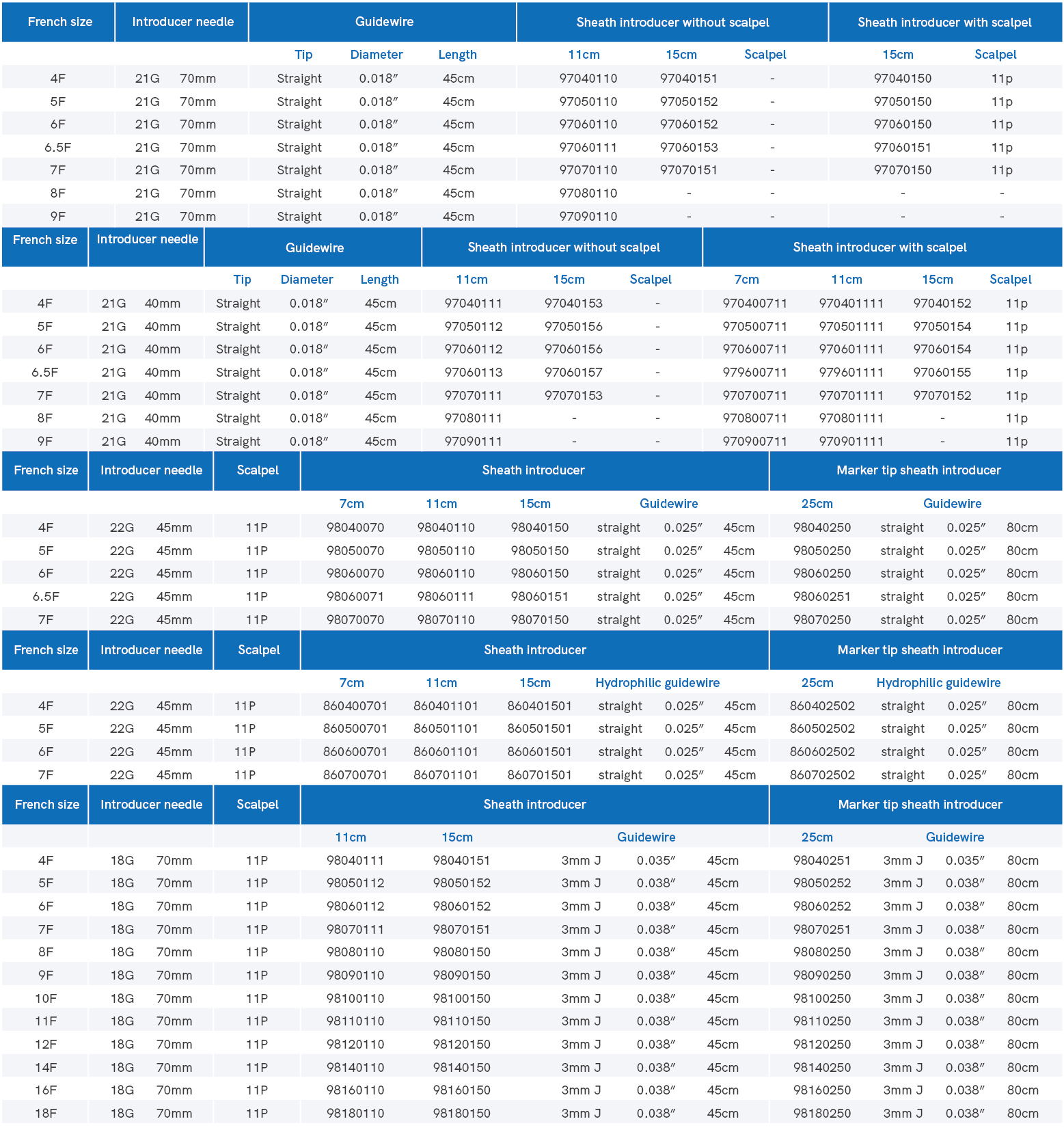

| French size | Introducer needle | Guidewire | Sheath introducer without scalpel | Sheath introducer with scalpel | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Metal needle | Tip | Diameter | Length | 11cm | 15cm | Scalpel | 7cm | 11cm | 15cm | Scalpel | ||
| 4F | 21G | 40mm | Straight | 0.018” | 45cm | 97040111 | 97040153 | - | 970400711 | 970401111 | 97040152 | 11p |
| 5F | 21G | 40mm | Straight | 0.018” | 45cm | 97050112 | 97050156 | - | 970500711 | 970501111 | 97050154 | 11p |
| 6F | 21G | 40mm | Straight | 0.018” | 45cm | 97060112 | 97060156 | - | 970600711 | 970601111 | 97060154 | 11p |
| 6.5F | 21G | 40mm | Straight | 0.018” | 45cm | 97060113 | 97060157 | - | 979600711 | 979601111 | 97060155 | 11p |
| 7F | 21G | 40mm | Straight | 0.018” | 45cm | 97070111 | 97070153 | - | 970700711 | 970701111 | 97070152 | 11p |
| 8F | 21G | 40mm | Straight | 0.018” | 45cm | 97080111 | - | - | 970800711 | 970801111 | - | 11p |
| 9F | 21G | 40mm | Straight | 0.018” | 45cm | 97090111 | - | - | 970900711 | 970901111 | - | 11p |
| French size | Introducer needle | Scalpel | Sheath introducer | Marker Tip Sheath introducer | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IV Cannula | 7cm | 11cm | 15cm | Guidewire | 25cm | Guidewire | ||||||
| 4F | 22G | 45mm | 11P | 98040070 | 98040110 | 98040150 | Straight | 0.025” | 45cm | 98040250 | Straight 0.025” 80cm | |
| 5F | 22G | 45mm | 11P | 98050070 | 98050110 | 98050150 | Straight | 0.025” | 45cm | 98050250 | Straight 0.025” 80cm | |
| 6F | 22G | 45mm | 11P | 98060070 | 98060110 | 98060150 | Straight | 0.025” | 45cm | 98060250 | Straight 0.025” 80cm | |
| 6.5F | 22G | 45mm | 11P | 98060071 | 98060111 | 98060151 | Straight | 0.025” | 45cm | 98060251 | Straight 0.025” 80cm | |
| 7F | 22G | 45mm | 11P | 98070070 | 98070110 | 98070150 | Straight | 0.025” | 45cm | 98070250 | Straight 0.025” 80cm | |
| French size | Introducer needle | Scalpel | Sheath introducer | Marker Tip Sheath introducer | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IV Cannula | 7cm | 11cm | 15cm | Hydrophilic guidewire | 25cm | Hydrophilic guidewire | ||||||
| 4F | 22G | 45mm | 11P | 860400701 | 860401101 | 860401501 | Straight | 0.025” | 45cm | 860402502 | Straight 0.025” 80cm | |
| 5F | 22G | 45mm | 11P | 860500701 | 860501101 | 860501501 | Straight | 0.025” | 45cm | 860502502 | Straight 0.025” 80cm | |
| 6F | 22G | 45mm | 11P | 860600701 | 860601101 | 860601501 | Straight | 0.025” | 45cm | 860602502 | Straight 0.025” 80cm | |
| 7F | 22G | 45mm | 11P | 860700701 | 860701101 | 860701501 | Straight | 0.025” | 45cm | 860702502 | Straight 0.025” 80cm | |
| French size | Introducer needle | Scalpel | Sheath introducer | Marker Tip Sheath introducer | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Metal needle | 11cm | 15cm | Guidewire | 25cm | Guidewire | ||||||||
| 4F | 18G | 70mm | 11P | 98040111 | 98040151 | 3mm J | 0.035” | 45cm | 98040251 | 3mm J | 0.035” | 80cm | |
| 5F | 18G | 70mm | 11P | 98050112 | 98050152 | 3mm J | 0.038” | 45cm | 98050252 | 3mm J | 0.038” | 80cm | |
| 6F | 18G | 70mm | 11P | 98060112 | 98060152 | 3mm J | 0.038” | 45cm | 98060252 | 3mm J | 0.038” | 80cm | |
| 7F | 18G | 70mm | 11P | 98070111 | 98070151 | 3mm J | 0.038” | 45cm | 98070251 | 3mm J | 0.038” | 80cm | |
| 8F | 18G | 70mm | 11P | 98080110 | 98080150 | 3mm J | 0.038” | 45cm | 98080250 | 3mm J | 0.038” | 80cm | |
| 9F | 18G | 70mm | 11P | 98090110 | 98090150 | 3mm J | 0.038” | 45cm | 98090250 | 3mm J | 0.038” | 80cm | |
| 10F | 18G | 70mm | 11P | 98100110 | 98100150 | 3mm J | 0.038” | 45cm | 98100250 | 3mm J | 0.038” | 80cm | |
| 11F | 18G | 70mm | 11P | 98110110 | 98110150 | 3mm J | 0.038” | 45cm | 98110250 | 3mm J | 0.038” | 80cm | |
| 12F | 18G | 70mm | 11P | 98120110 | 98120150 | 3mm J | 0.038” | 45cm | 98120250 | 3mm J | 0.038” | 80cm | |
| 14F | 18G | 70mm | 11P | 98140110 | 98140150 | 3mm J | 0.038” | 45cm | 98140250 | 3mm J | 0.038” | 80cm | |
| 16F | 18G | 70mm | 11P | 98160110 | 98160150 | 3mm J | 0.038” | 45cm | 98160250 | 3mm J | 0.038” | 80cm | |
| 18F | 18G | 70mm | 11P | 98180110 | 98180150 | 3mm J | 0.038” | 45cm | 98180250 | 3mm J | 0.038” | 80cm | |
