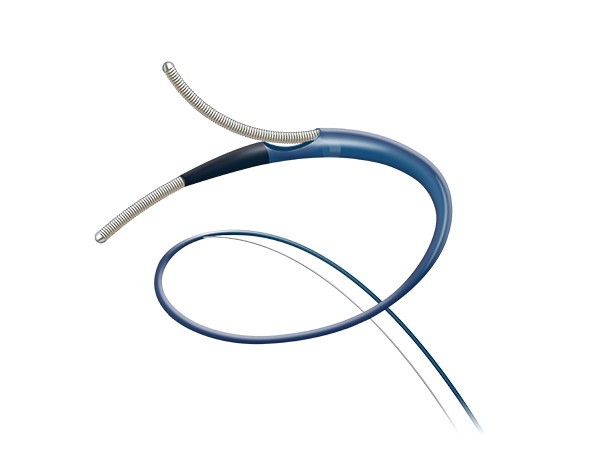

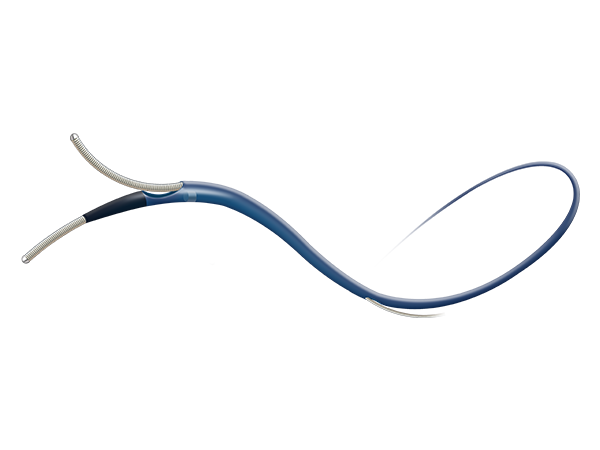

The DualTrack™ microcatheter features dual lumen with rapid exchange convenience, enabling the deployment of various dual-wire techniques in complex procedures, or subselective delivery of medication or contrast media.
- 1.5F Tip O.D. ensures excellent crossability and trackability
- Soft radiopaque materials for atraumatic and precise placement/location
- Making side branch access easier
- Compared with a round-shaped pipe, the oval-shaped pipe is more stable, and not easy to swing in the vessel
- Tungsten mesh braided for RX Lumen and stainless steel mesh braided for OTW lumen, achieving the perfect balance between stable support and sufficient flexibility
- Facilitating the guide wire returning to the true lumen via side hole while aspirating
- Realized efficient perfusion of thrombolysis
- Ensure better crossability, with no need to exchange the guidewire
| REF | French size | Effective length (cm) | Distal maximum O.D. (mm) | Proximal maximum O.D. (mm) | Guidewire lumen I.D. (mm) | Delivery lumen I.D. (mm) | Guidewire lumen length (mm) | Side holes | Note |
|---|---|---|---|---|---|---|---|---|---|
| 138323501 | 3.2F | 135 | 1.05 | 1.01 | 0.43 | 0.43 | 200 | - | OTW-RX |
| 138323511 | 3.2F | 135 | 1.05 | 1.01 | 0.43 | 0.43 | 200 | 1 | OTW-RX |
| 138323521 | 3.2F | 135 | 1.05 | 1.01 | 0.43 | 0.43 | 200 | 2 | OTW-RX |
| 138323531 | 3.2F | 135 | 1.05 | 1.01 | 0.43 | 0.43 | 200 | 3 | OTW-RX |
| 138323502 | 3.2F | 135 | 1.05 | 1.13 | 0.43 | 0.43 | 1425 | - | OTW-OTW |
| 138324501 | 3.2F | 145 | 1.05 | 1.01 | 0.43 | 0.43 | 200 | - | OTW-RX |
| 138324511 | 3.2F | 145 | 1.05 | 1.01 | 0.43 | 0.43 | 200 | 1 | OTW-RX |
| 138324521 | 3.2F | 145 | 1.05 | 1.01 | 0.43 | 0.43 | 200 | 2 | OTW-RX |
| 138324531 | 3.2F | 145 | 1.05 | 1.01 | 0.43 | 0.43 | 200 | 3 | OTW-RX |
| 138324502 | 3.2F | 145 | 1.05 | 1.13 | 0.43 | 0.43 | 1525 | - | OTW-OTW |
| 138363501 | 3.6F | 135 | 1.19 | 1.08 | 0.43 | 0.58 | 200 | - | OTW-RX |
| 138363511 | 3.6F | 135 | 1.19 | 1.08 | 0.43 | 0.58 | 200 | 1 | OTW-RX |
| 138363521 | 3.6F | 135 | 1.19 | 1.08 | 0.43 | 0.58 | 200 | 2 | OTW-RX |
| 138363531 | 3.6F | 135 | 1.19 | 1.08 | 0.43 | 0.58 | 200 | 3 | OTW-RX |
| 138363502 | 3.6F | 135 | 1.19 | 1.30 | 0.43 | 0.58 | 1425 | - | OTW-OTW |
| 138364501 | 3.6F | 145 | 1.19 | 1.08 | 0.43 | 0.58 | 200 | - | OTW-RX |
| 138364511 | 3.6F | 145 | 1.19 | 1.08 | 0.43 | 0.58 | 200 | 1 | OTW-RX |
| 138364521 | 3.6F | 145 | 1.19 | 1.08 | 0.43 | 0.58 | 200 | 2 | OTW-RX |
| 138364531 | 3.6F | 145 | 1.19 | 1.08 | 0.43 | 0.58 | 200 | 3 | OTW-RX |
| 138364502 | 3.6F | 145 | 1.19 | 1.30 | 0.43 | 0.58 | 1525 | - | OTW-OTW |
