Straight Tip 1.7F Microcatheter: Optimized design for CTO Retrograde Navigating
Straight Tip 1.9F Microcatheter: Designed for both CTO Antegrade and Retrograde Navigating
Tapered Tip 2.6F Microcatheter: Optimized design for Calcified Lesion
Dual Lumen 3.2F Microcatheter: Optimal solution for various complex PCI technique

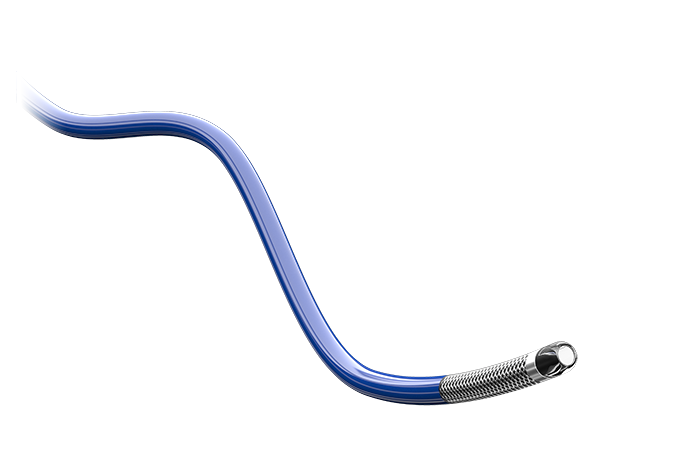

- Stainless steel mesh braided structure of the microcatheter provides outstanding guidewire support and device manipulation
- PTFE inner layer for minimizing resistance during guidewire advance operation
- Hydrophilic coating on the distal for smooth delivery even in tortuous anatomy
- Slightly tapered enables to cross the complex lesion easily
- Multi-durometer of polymer tube o ers smooth transition and flexibility
- 2 or 3 marker bands are available for clear visualization
| Distal O.D. | REF. | Length(cm) | Proximal O.D. | Distal I.D. | Max GW O.D. | Marker(s) | Curve |
|---|---|---|---|---|---|---|---|
| 1.7F | 60172307 | 110 | 2.3F | 0.016” | 0.014” | 1 | Straight |
| 60172306 | 130 | 0.016” | 1 | ||||
| 60172303 | 150 | 0.015” | 2 | ||||
| 60172305 | 150 | 0.016” | 1 | ||||
| 60172304 | 170 | 0.016” | 1 | ||||
| 60172302 | 170 | 0.015” | 2 | ||||
| 60172301 | 170 | 0.015” | 3 | ||||
| 1.9F | 60192414 | 110 | 2.4F | 0.017” | 0.014” | 1 | Straight |
| 60192405 | 130 | 1 | |||||
| 60192403 | 150 | 2 | |||||
| 60192404 | 150 | 1 | |||||
| 60192407 | 170 | 1 | |||||
| 60192402 | 170 | 2 | |||||
| 60192406 | 170 | 3 | |||||
| 60192401 | 170 | 3 | |||||
| 2.6F | 60262801 | 130 | 2.8F | 0.0175” | 0.014” | 1 | Tapered |
| 60262802 | 150 | 1 | |||||
| 60262804 | 170 | 1 | |||||
| 3.2F | 60322301 | 135 | 2.3F | 0.017” | 0.014” | 2 | Dual Lumen |
