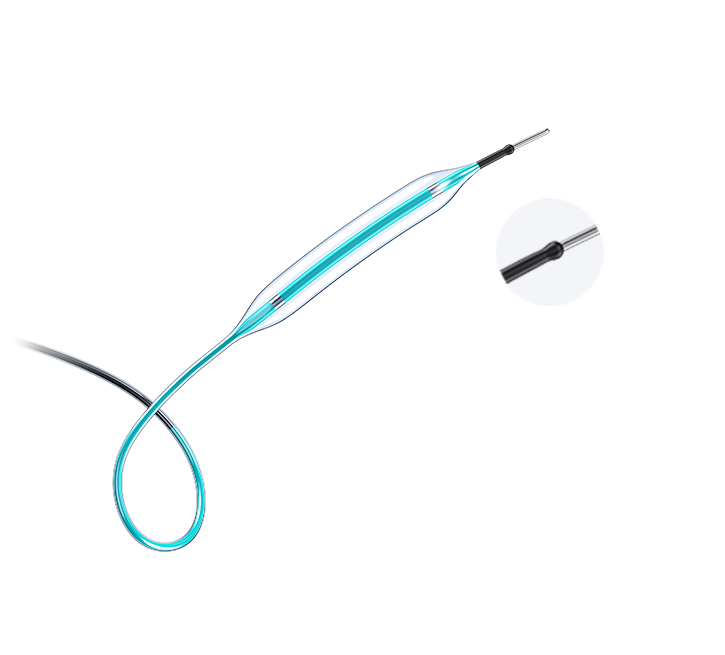

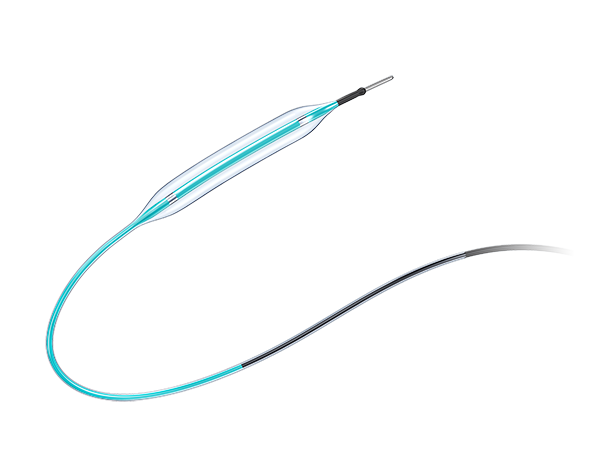

CONQUEROR™ Lollipop NC PTCA balloon catheter features a spherical tip, combined with very low compliance and soft balloon with hydrophilic coating, designed to cross the most tortuous vessel.

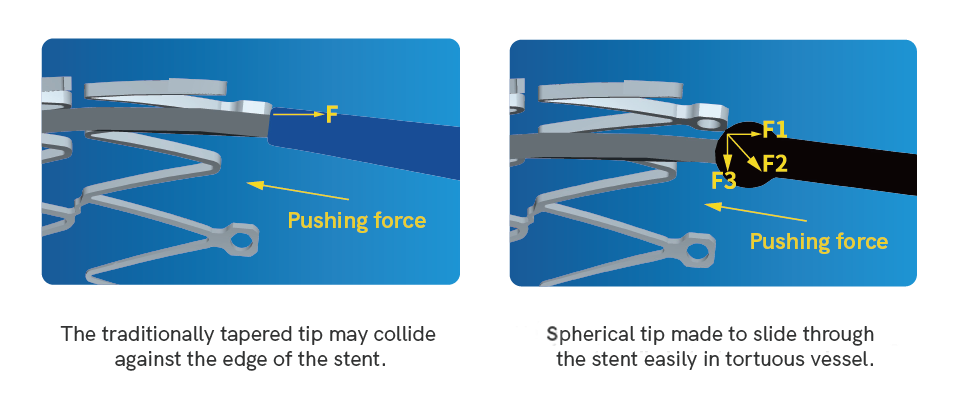

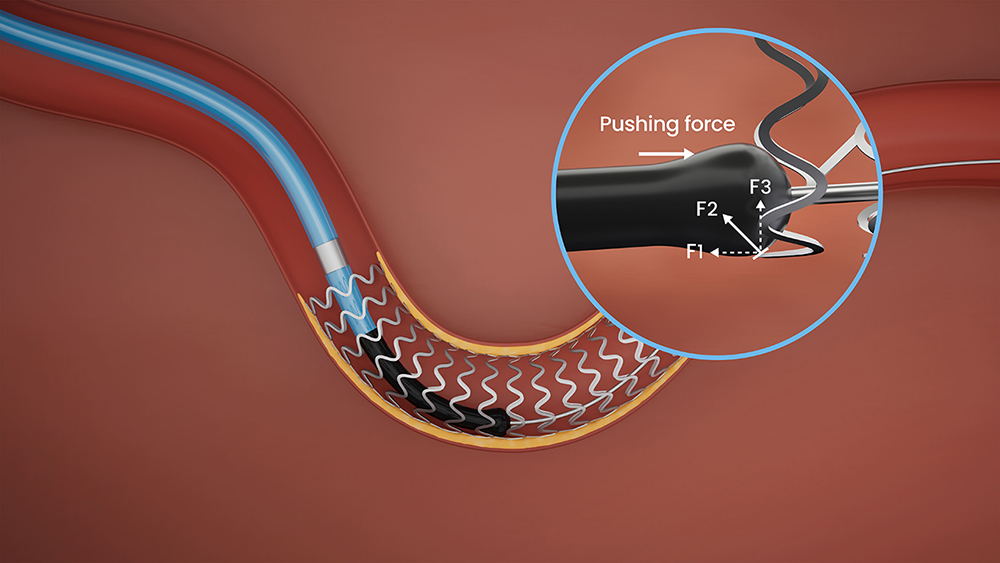

- The spherical tip avoids collision between the stent and NC balloon catheter, gliding the catheter through the stent.
- Simplify the advance of the catheter at tortuous, stent-covered arteries.
- Soft spherical tip with tungsten added to ensure atraumatic guidance and optimal visualization.
- The spherical tip made to slide through the stent easily in tortuous vessels.
- Tapered tip with ultra-low profile 0.016” * for excellent crossability.
(* The data came from the laboratory test data)
| Diameter (mm) Diameter (mm) / Length | 6mm | 8mm | 12mm | 15mm | 20mm | 30mm | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Spherical tip | Tapered tip | Spherical tip | Tapered tip | Spherical tip | Tapered tip | Spherical tip | Tapered tip | Spherical tip | Tapered tip | Spherical tip | Tapered tip | |
| 2.00 | 41200061 | 41200060 | 41200081 | 41200080 | 41200121 | 41200120 | 41200151 | 41200150 | 41200201 | 41200200 | 41200301 | 41200300 |
| 2.25 | 41225061 | 41225060 | 41225081 | 41225080 | 41225121 | 41225120 | 41225151 | 41225150 | 41225201 | 41225200 | 41225301 | 41225300 |
| 2.50 | 41250061 | 41250060 | 41250081 | 41250080 | 41250121 | 41250120 | 41250151 | 41250150 | 41250201 | 41250200 | 41250301 | 41250300 |
| 2.75 | 41275061 | 41275060 | 41275081 | 41275080 | 41275121 | 41275120 | 41275151 | 41275150 | 41275201 | 41275200 | 41275301 | 41275300 |
| 3.00 | 41300061 | 41300060 | 41300081 | 41300080 | 41300121 | 41300120 | 41300151 | 41300150 | 41300201 | 41300200 | 41300301 | 41300300 |
| 3.25 | 41325061 | 41325060 | 41325081 | 41325080 | 41325121 | 41325120 | 41325151 | 41325150 | 41325201 | 41325200 | 41325301 | 41325300 |
| 3.50 | 41350061 | 41350060 | 41350081 | 41350080 | 41350121 | 41350120 | 41350151 | 41350150 | 41350201 | 41350200 | 41350301 | 41350300 |
| 3.75 | 41375061 | 41375060 | 41375081 | 41375080 | 41375121 | 41375120 | 41375151 | 41375150 | 41375201 | 41375200 | 41375301 | 41375300 |
| 4.00 | 41400061 | 41400060 | 41400081 | 41400080 | 41400121 | 41400120 | 41400151 | 41400150 | 41400201 | 41400200 | 41400301 | 41400300 |
| 4.50 | 41450061 | 41450060 | 41450081 | 41450080 | 41450121 | 41450120 | 41450151 | 41450150 | 41450201 | 41450200 | - | - |
| 5.00 | 41500061 | 41500060 | 41500081 | 41500080 | 41500121 | 41500120 | 41500151 | 41500150 | 41500201 | 41500200 | - | - |
