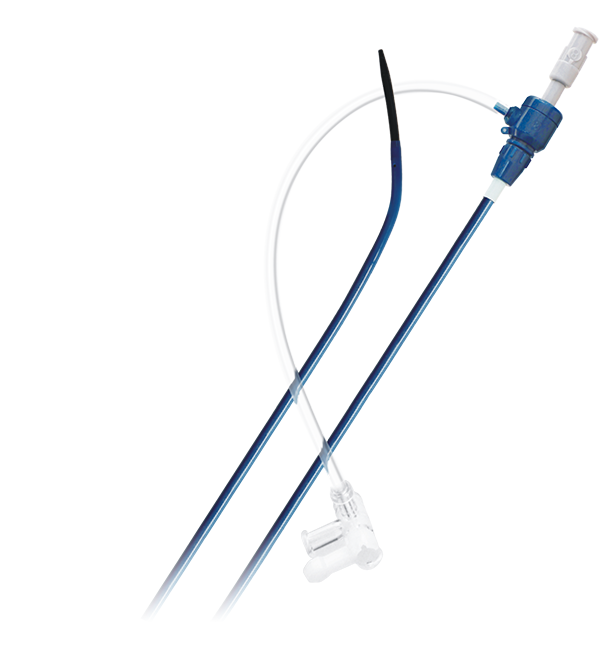

BraidinTM L Guiding Sheath inherits the premium quality of APT Medical hemostasis introducer and features braided structure and marked tip to provide superior kink resistance, support and visibility, it is widely used in peripheral intervention, electrophysiology, and structural heart procedures.

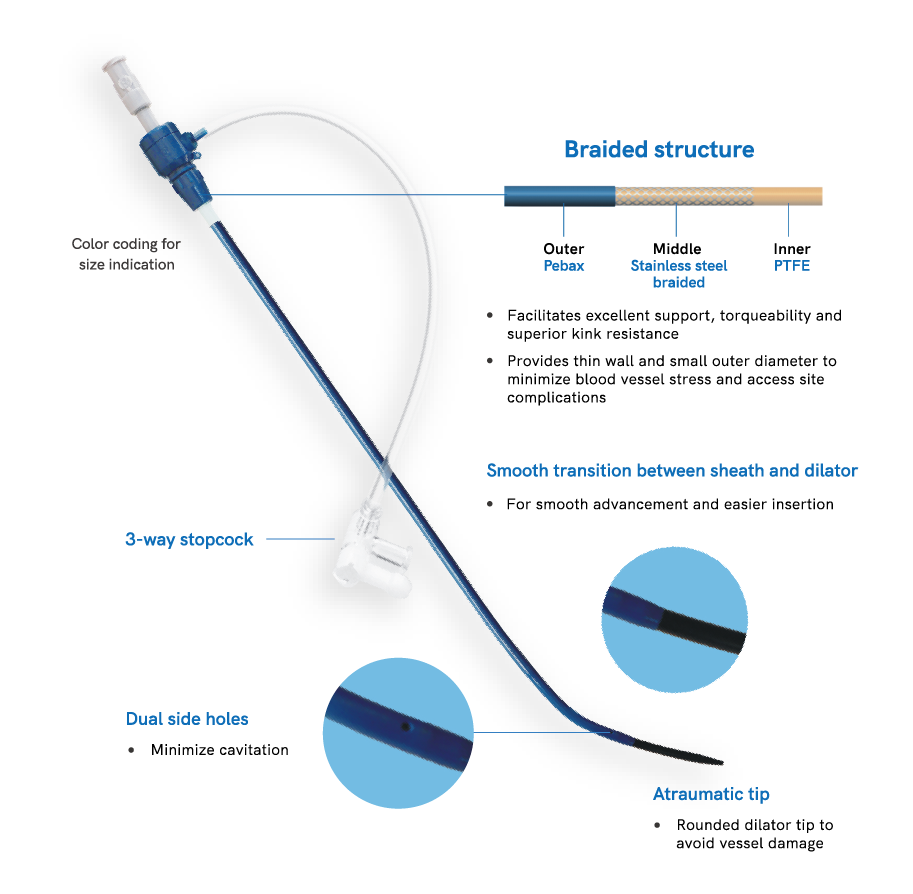

- Facilitates excellent support, torqueability and superior kink resistance
- Provides thin wall and small outer diameter to minimize blood vessel stress and access site complications
- For smooth advancement and easier insert
- Rounded dilator tip to avoid vessel damage
| Curve | Length | 4F | 5F | 5.5F | 6F | 6.5F | 7F | 8F | 9F | Guidewire | Guidewire type | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Straight | 45cm | 950404511 | 950504511 | - | 950604511 | - | 950704511 | 950804511 | - | - | - | |
| 50cm | 890405001 | 890505001 | 890505008 | 890605001 | 890605008 | 890705001 | - | - | 2mmJ, 0.025" ×150cm | Hydrophilic | ||
| 50cm | - | 890505000 | 890505007 | 890605000 | 890605007 | 890705000 | 890805000 | 890905000 | 3mmJ, 0.038" ×150cm | Hydrophilic | ||
| 50cm | 890405000 | - | - | - | - | - | - | - | 3mm J, 0.035" ×150cm | Hydrophilic | ||
| 70cm | 950407015 | 950507015 | 959507015 | 950607015 | 959607015 | 950707015 | 950807015 | 950907015 | - | - | ||
| 70cm | - | 950507021 | 959507021 | 950607021 | 959607021 | 950707021 | 950807021 | 950907021 | 3mm J, 0.038" ×150cm | - | ||
| 90cm | 950409020 | 950509020 | - | 950609020 | - | 950709020 | 950809020 | 950909020 | - | - | ||
| 90cm | - | 890509001 | 890509003 | 890609001 | 890609003 | 890709001 | - | - | 2mmJ, 0.025" ×180cm | Hydrophilic | ||
| 90cm* | - | 98050904 | 98050905 | 98060904 | 98060905 | 98070902 | 98080902 | - | 3mm J, 0.025" ×150cm | Metal | ||
| 90cm | 95040900 | 95050900 | 95050901 | 95060900 | 95060901 | 95070900 | 95080900 | - | 3mm J, 0.025" ×150cm | Metal | ||
| 90cm | - | 950509022 | 959509022 | 950609022 | 959609022 | 950709022 | 950809022 | 950909022 | 3mm J, 0.038" ×180cm | Metal | ||
| 90cm | - | 890509000 | 890509002 | 890609000 | 890609002 | 890709000 | 890809000 | 890909000 | 3mmJ, 0.038" 180cm | Hydrophilic | ||
| * Equipped with 22G, 45mm needle and 11P scalpel | ||||||||||||
| Curve | Length | 10F | 12F | 14F | 16F | 18F | Guidewire | Guidewire type | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Straight | 50cm | 891005000 | 891205000 | 891405000 | 891605000 | 891805000 | 3mmJ, 0.038" ×150cm | Hydrophilic | ||||
| 70cm | 951007015 | 951207015 | 951407015 | 951607015 | 951807015 | - | - | |||||
| 70cm | 951007021 | 951207021 | 951407021 | 951607021 | 951807021 | 3mm J, 0.038" ×150cm | - | |||||
| 90cm | 951009020 | 951209020 | 951409020 | 951609020 | 951809020 | - | - | |||||
| 90cm | 951009022 | 951209022 | 951409022 | 951609022 | 951809022 | 3mm J, 0.038" ×180cm | Metal | |||||
| 90cm | 891009000 | 891209000 | 891409000 | 891609000 | 891809000 | 3mmJ, 0.038" ×180cm | Hydrophilic | |||||
| Curve | Length | 5F | 6F | 6.5F | 7F | 8F | 8.5F | 10F | 12F | Guidewire | Guidewire type | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HS | 45cm | 950504512 | 950604512 | - | 950704512 | 950804512 | - | - | - | - | - | |
| Lima | 45cm | 950504514 | 950604514 | - | 950704514 | 950804514 | - | - | - | - | - | |
| MPA | 45cm | 950504510 | 950604510 | - | 950704510 | 950804510 | - | - | - | - | - | |
| RDC | 45cm | 950504513 | 950604513 | - | 950709413 | 950804513 | - | - | - | - | - | |
| T2 | 45cm | - | 890604500 | - | 890704500 | 890804500 | - | - | - | 2mmJ, 0.025" ×150cm | Hydrophilic | |
| MPA | 50cm | - | 95060507 | 95060509 | 95070507 | - | - | - | - | 3mm J, 0.032" ×150cm | Metal | |
| MPA | 50cm | - | 890605003 | 890605010 | 890705003 | - | - | - | - | 3mmJ, 0.035" ×150cm | Hydrophilic | |
| JR4 | 50cm | - | 890605002 | 890605009 | 890705002 | - | - | - | - | 3mmJ, 0.035" ×150cm | Hydrophilic | |
| JR4 | 50cm | - | 95060506 | 95060508 | 95070506 | - | - | - | - | 3mm J, 0.032" ×150cm | Metal | |
| R1 | 50cm | 95050502 | 95060505 | 95060504 | 95070508 | - | - | - | - | 3mm J, 0.032" ×150cm | Metal | |
| R2 | 50cm | 95050503 | 95060503 | 95060502 | 95070509 | - | - | - | - | 3mm J, 0.032" ×150cm | Metal | |
| R3 | 50cm | 95050504 | 95060501 | 95060500 | 95070505 | - | - | - | - | 3mm J, 0.032" ×150cm | Metal | |
| R1 | 50cm | 890505004 | 890605004 | 890605011 | 890705004 | - | - | - | - | 3mmJ, 0.035" ×150cm | Hydrophilic | |
| R2 | 50cm | 890505005 | 890605005 | 890605012 | 890705005 | - | - | - | - | 3mmJ, 0.035" ×150cm | Hydrophilic | |
| R3 | 50cm | 890505006 | 890605006 | 890605013 | 890705006 | - | - | - | - | 3mmJ, 0.035" ×150cm | Hydrophilic | |
| T2 | 60cm | - | 890606000 | - | 890706000 | 890806000 | - | 891006000 | 891206000 | 3mmJ, 0.032" ×150cm | Hydrophilic | |
| LA | 62cm | - | - | - | - | 95080628 | 95080629 | - | - | 3mm J, 0.032" ×180cm | Metal | |
| LA | 62cm | - | - | - | - | 95080621 | 95080626 | - | - | - | - | |
| LA | 62cm | - | - | - | - | 890806201 | 890806204 | - | - | 3mmJ, 0.038" ×150cm | Hydrophilic | |
| RA | 62cm | - | - | - | - | 95080624 | 95080622 | - | - | 3mm J, 0.032" ×180cm | Metal | |
| RA | 62cm | - | - | - | - | 95080620 | 95080625 | - | - | - | - | |
| RA | 62cm | - | - | - | - | 890806200 | 890806203 | - | - | 3mmJ, 0.038" ×150cm | Hydrophilic | |
| LA | 80cm | - | - | - | - | 890808000 | 890808002 | - | - | 3mmJ, 0.038" ×180cm | Hydrophilic | |
| MPA | 90cm | 950509016 | 950609016 | - | 950709016 | 950809016 | - | - | - | - | - | |
| HS | 90cm | 950509017 | 950609017 | - | 950709017 | 950809017 | - | - | - | - | - | |
| RDC | 90cm | 950509018 | 950609018 | - | 950709018 | 950809018 | - | - | - | - | - | |
| Lima | 90cm | 950509019 | 950609019 | - | 950709019 | 950809019 | - | - | - | - | - | |
| Curve | Length | 4F | 5F | 6F | 7F | 8F | 9F | 10F | 12F | 14F | 16F | 18F |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45° | 85cm | 95040851 | 95050851 | 95060851 | 95070851 | 95080851 | 95090851 | 95100851 | 95120851 | 95140851 | 95160851 | 95180851 |
| 270° | 95040850 | 95050850 | 95060850 | 95070850 | 95080850 | 95090850 | 95100850 | 95120850 | 95140850 | - | - |
