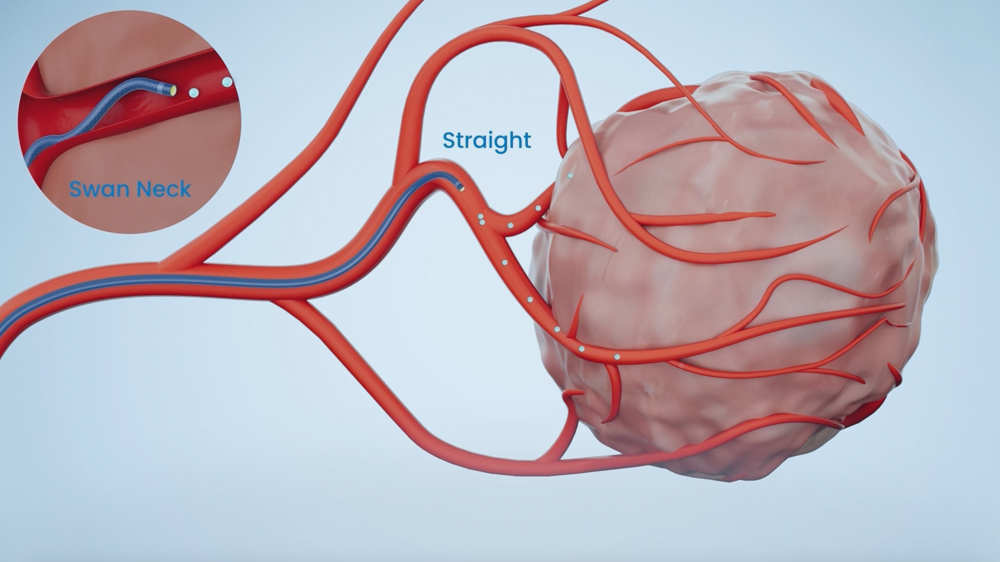

Tips: 6 different tips for different anatomies

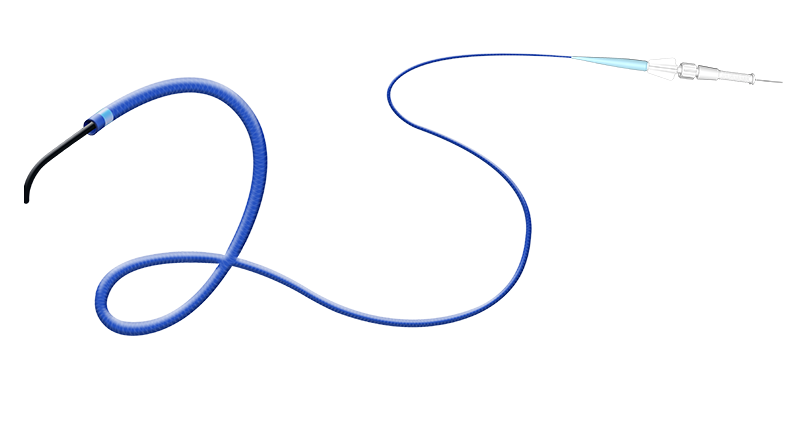

Catheter Body:
• Triple-Layer structure
• 7 segments catheter stiffness (decrease from proximal to distal)
• Hydrophilic coating for smooth and atraumatic navigation
• One/two Pt. markers help to locate the catheter
Comprehensive Specifications: 5 French Size (OD), 6 different length, 6 different tip shapes
- 1.8-2.7F in O.D., 100-180cm in working length，single / double Markers，370 specs in total
- 150cm/160cm/180cm for radial
- All specs equipped with: shaping needle, guidewire introducer, torque device and syringe (for embolic agent)
- All straight MCs are available with micro guidewire
- Stainless steel & tungsten braiding brings in superb anti-kink performance and maneuverability
- Thin wall yet larger lumen facilitates efficient embolization and high flow rate
- Hub in different color to differentiate MC size
| Tip Curve | Length (cm) | 1.8F | 2.0F | 2.2F | 2.5F | 2.7F |
|---|---|---|---|---|---|---|
| Straight | 110 | 3618101ST00 | 3620101ST00 | 3622101ST00 | 3625101ST00 | 3627101ST00 |
| 45° | 36181014500 | 36201014500 | 36221014500 | 36251014500 | 36271014500 | |
| 70° | 36181017000 | 36201017000 | 36221017000 | 36251017000 | 36271017000 | |
| J | 3618101JC00 | 3620101JC00 | 3622101JC00 | 3625101JC00 | 3627101JC00 | |
| Swan Neck | 3618101SN00 | 3620101SN00 | 3622101SN00 | 3625101SN00 | 3627101SN00 | |
| Cobra | 3618101CB00 | 3620101CB00 | 3622101CB00 | 3625101CB00 | 3627101CB00 | |
| Straight | 130 | 3618301ST00 | 3620301ST00 | 3622301ST00 | 3625301ST00 | 3627301ST00 |
| 45° | 36183014500 | 36203014500 | 36223014500 | 36253014500 | 36273014500 | |
| 70° | 36183017000 | 36203017000 | 36223017000 | 36253017000 | 36273017000 | |
| J | 3618301JC00 | 3620301JC00 | 3622301JC00 | 3625301JC00 | 3627301JC00 | |
| Swan Neck | 3618301SN00 | 3620301SN00 | 3622301SN00 | 3625301SN00 | 3627301SN00 | |
| Cobra | 3618301CB00 | 3620301CB00 | 3622301CB00 | 3625301CB00 | 3627301CB00 | |
| *Without Guidewire |
| Tip Curve | Length (cm) | 1.8F | 2.0F | 2.2F | 2.5F | 2.7F |
|---|---|---|---|---|---|---|
| Straight | 110 | - | - | 3622101ST01 | 3625101ST01 | 3627101ST01 |
| 45° | - | - | 36221014501 | 36251014501 | 36271014501 | |
| 70° | - | - | 36221017001 | 36251017001 | 36271017001 | |
| J | - | - | 3622101JC01 | 3625101JC01 | 3627101JC01 | |
| Swan Neck | - | - | 3622101SN01 | 3625101SN01 | 3627101SN01 | |
| Cobra | - | - | 3622101CB01 | 3625101CB01 | 3627101CB01 | |
| Straight | 130 | - | - | 3622301ST01 | 3625301ST01 | 3627301ST01 |
| 45° | - | - | 36223014501 | 36253014501 | 36273014501 | |
| 70° | - | - | 36223017001 | 36253017001 | 36273017001 | |
| J | - | - | 3622301JC01 | 3625301JC01 | 3627301JC01 | |
| Swan Neck | - | - | 3622301SN01 | 3625301SN01 | 3627301SN01 | |
| Cobra | - | - | 3622301CB01 | 3625301CB01 | 3627301CB01 |
130cm Distail equipped with 150cm micro guidewire
110cm Distail equipped with 130cm micro guidewire
All sizes are equipped with: shaping needle, guidewire introducer, torque device and syringe
| Tip Curve | Length (cm) | 1.8F | 2.0F | 2.2F | 2.5F | 2.7F |
|---|---|---|---|---|---|---|
| Straight | 110 | 3618102ST00 | 3620102ST00 | 3622102ST00 | 3625102ST00 | 3627102ST00 |
| 45° | 36181024500 | 36201024500 | 36221024500 | 36251024500 | 36271024500 | |
| 70° | 36181027000 | 36201027000 | 36221027000 | 36251027000 | 36271027000 | |
| J | 3618102JC00 | 3620102JC00 | 3622102JC00 | 3625102JC00 | 3627102JC00 | |
| Swan Neck | 3618102SN00 | 3620102SN00 | 3622102SN00 | 3625102SN00 | 3627102SN00 | |
| Cobra | 3618102CB00 | 3620102CB00 | 3622102CB00 | 3625102CB00 | 3627102CB00 | |
| Straight | 130 | 3618302ST00 | 3620302ST00 | 3622302ST00 | 3625302ST00 | 3627302ST00 |
| 45° | 36183024500 | 36203024500 | 36223024500 | 36253024500 | 36273024500 | |
| 70° | 36183027000 | 36203027000 | 36223027000 | 36253027000 | 36273027000 | |
| J | 3618302JC00 | 3620302JC00 | 3622302JC00 | 3625302JC00 | 3627302JC00 | |
| Swan Neck | 3618302SN00 | 3620302SN00 | 3622302SN00 | 3625302SN00 | 3627302SN00 | |
| Cobra | 3618302CB00 | 3620302CB00 | 3622302CB00 | 3625302CB00 | 3627302CB00 | |
| *Without Guidewire |
| Tip Curve | Length (cm) | 1.8F | 2.0F | 2.2F | 2.5F | 2.7F |
|---|---|---|---|---|---|---|
| Straight | 110 | - | - | 3622102ST01 | 3625102ST01 | 3627102ST01 |
| 45° | - | - | 36221024501 | 36251024501 | 36271024501 | |
| 70° | - | - | 36221027001 | 36251027001 | 36271027001 | |
| J | - | - | 3622102JC01 | 3625102JC01 | 3627102JC01 | |
| Swan Neck | - | - | 3622102SN01 | 3625102SN01 | 3627102SN01 | |
| Cobra | - | - | 3622102CB01 | 3625102CB01 | 3627102CB01 | |
| Straight | 130 | - | - | 3622302ST01 | 3625302ST01 | 3627302ST01 |
| 45° | - | - | 36223024501 | 36253024501 | 36273024501 | |
| 70° | - | - | 36223027001 | 36253027001 | 36273027001 | |
| J | - | - | 3622302JC01 | 3625302JC01 | 3627302JC01 | |
| Swan Neck | - | - | 3622302SN01 | 3625302SN01 | 3627302SN01 | |
| Cobra | - | - | 3622302CB01 | 3625302CB01 | 3627302CB01 |
130cm Distail equipped with 150cm micro guidewire
110cm Distail equipped with 130cm micro guidewire
All sizes are equipped with: shaping needle, guidewire introducer, torque device and syringe
