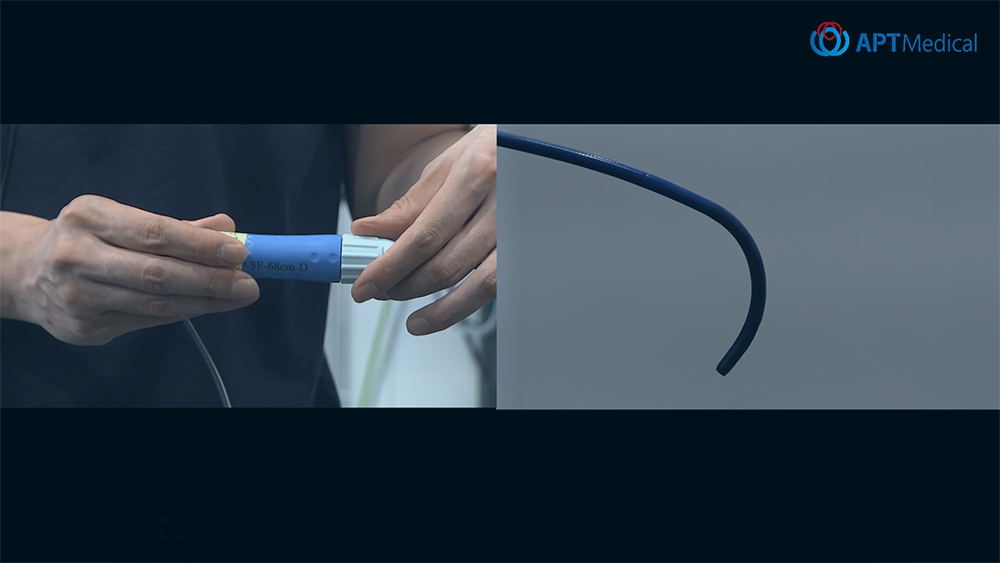

The steerable sheath tip helps reach hard-to-access areas of the heart, with precise maneuverability to improve the efficiency of your clinical practice.
| French size | A curve | B curve | D curve | Total / Working Length (cm) | Side Hole | Hydrophilic Guidewire Information |
|---|---|---|---|---|---|---|
| 6F | 990608201 | 990608202 | 990608203 | 96/82 | - | 0.038” × 180cm × J Tip |
| 8F | - | 990808202 | 990808203 | 96/82 | - | 0.038” × 180cm × J Tip |
| 8F | - | 990806822 | 990806823 | 82/68 | 2 | 0.032” × 180cm × J Tip |
| 8.5F | - | 990858202 | 990858203 | 96/82 | - | 0.038” × 180cm × J Tip |
| 8.5F | - | 990858222 | 990858223 | 96/82 | 2 | 0.032” × 180cm × J Tip |
| 8.5F | - | 990856822 | 990856823 | 82/68 | 2 | 0.032” × 180cm × J Tip |
| 10F | - | - | 991008203 | 97/82 | - | 0.038” × 180cm × J Tip |
| 12F | - | - | 991208203 | 97/82 | - | 0.038” × 180cm × J Tip |

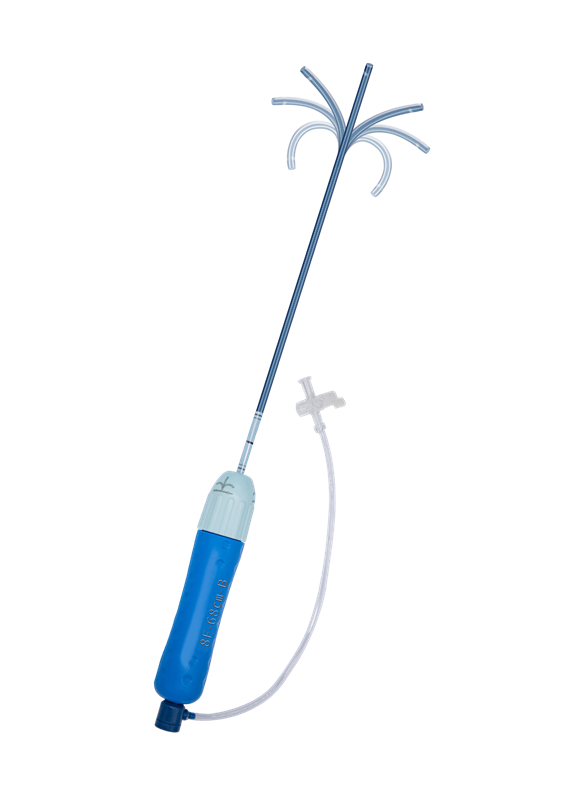

Steerable Length: A Curve 26mm, B Curve 39mm, D Curve 52mm
Note: Only 68cm (working length) could be compatible withAPT Medical 89cm transseptal needle, reference number: 94180890
